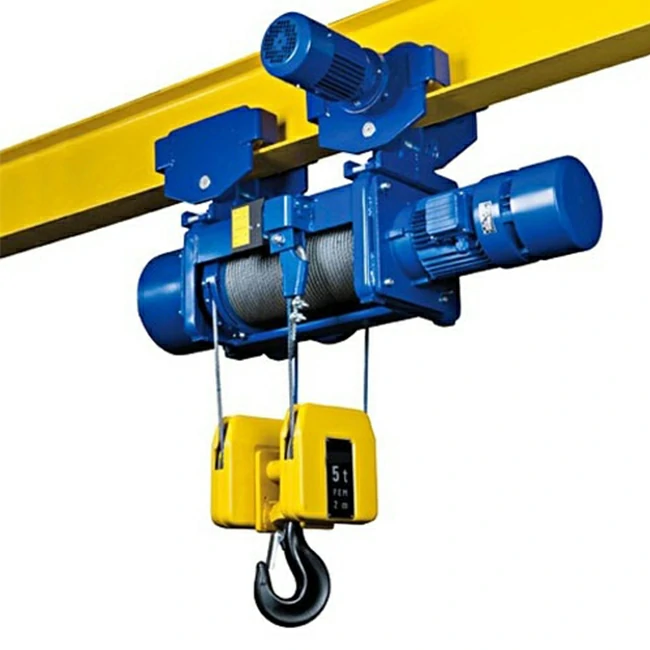

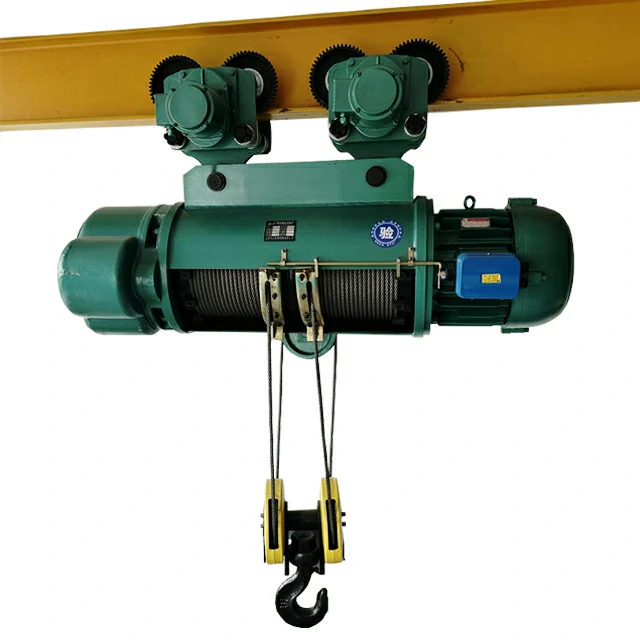

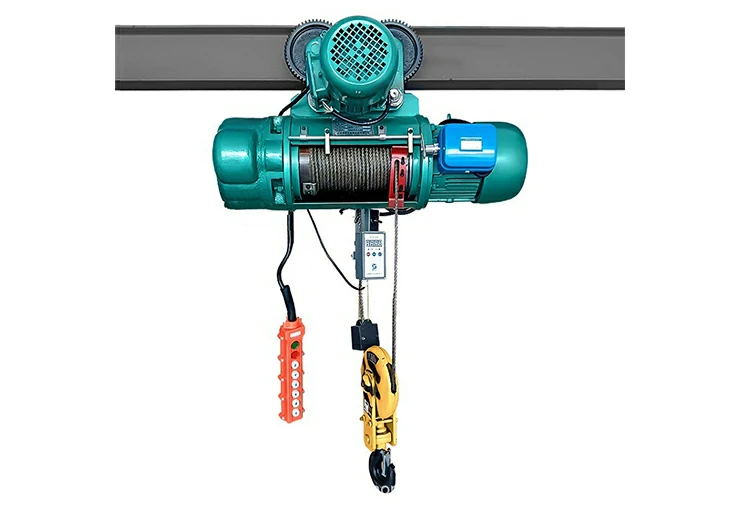

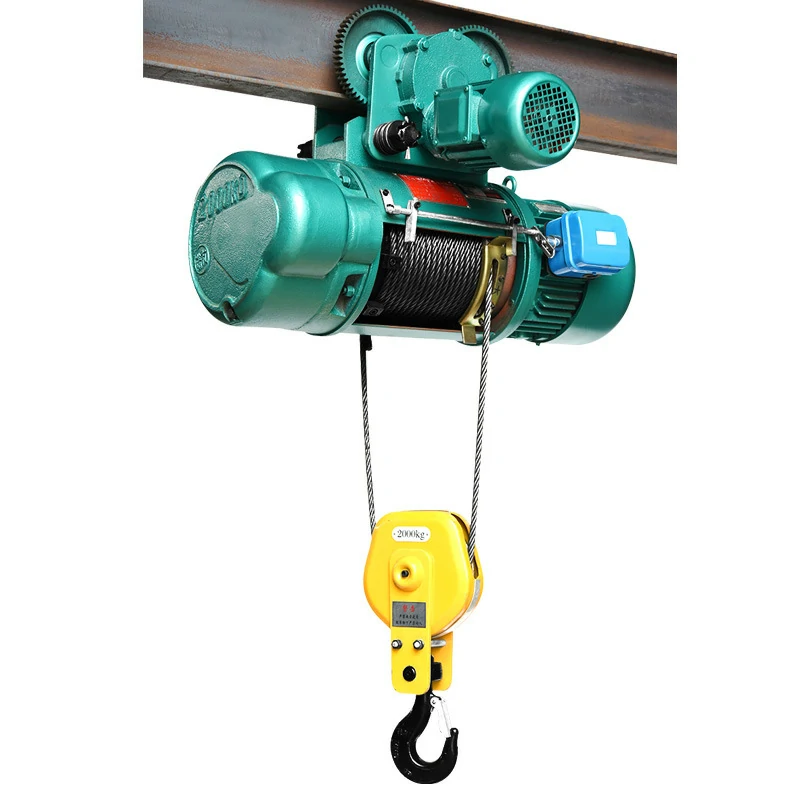

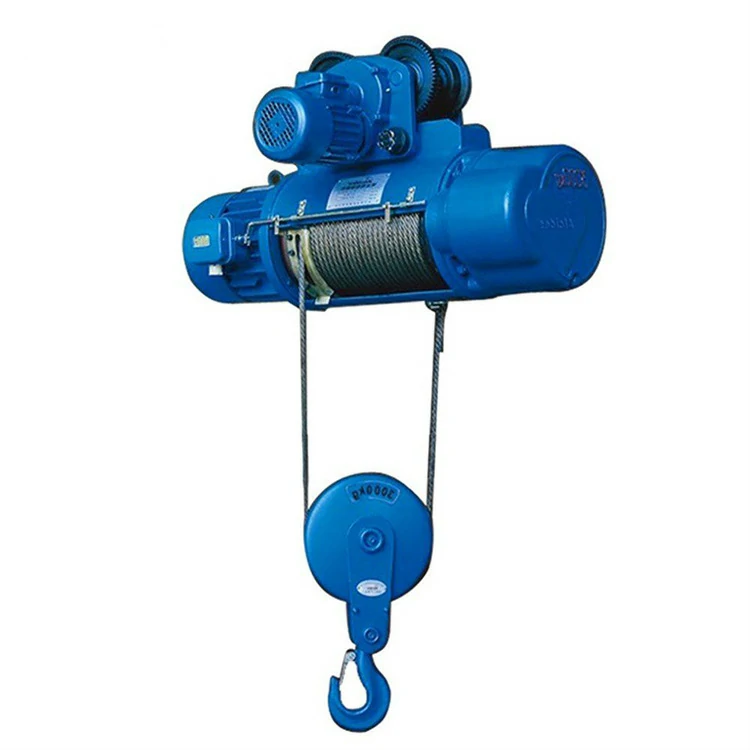

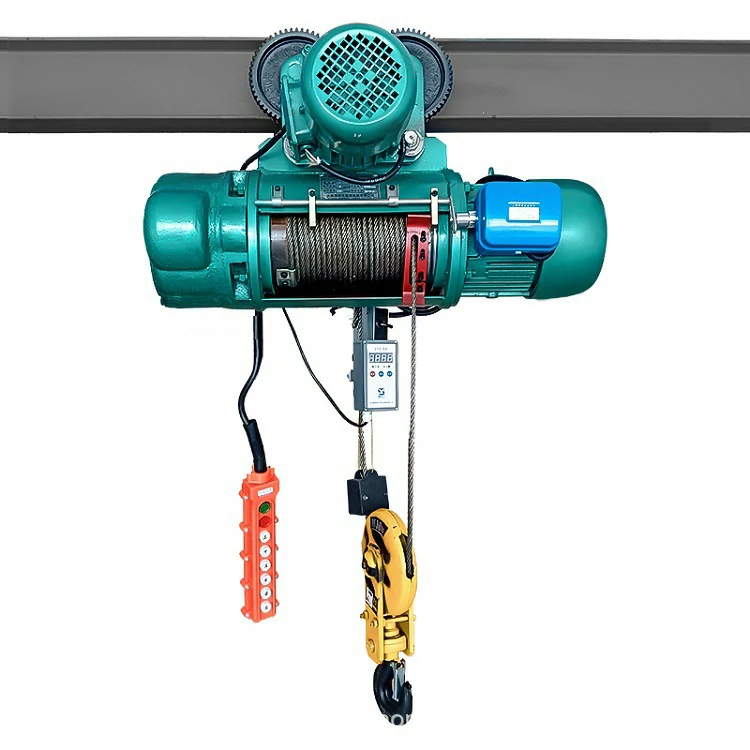

Single Speed Wire Rope Electric Hoist
Electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. The lifting capacity of single speed electric wire rope hoist is 0,5 to 20 ton and the working class is M3 and M4.
- Product Type:CD
Lifting Capacity:0.5~20 tons
Lifting Height:6~50 m
Working Class:M3,M4
Ambient Temperature:-20~40℃
Single Speed Wire Rope Electric Hoist Introduction
CD type electric wire rope hoist has the characteristics of compact structure, stable operation, convenient operation, strong versatility of parts and high cost performance. It can match with manual trolley and electric trolley of different speeds. The travelling hoist can be installed on electric overhead crane, single beam manual overhead crane, double girder overhead crane, jib crane(cantilever crane), gantry crane, etc., and also can be suspended on the I-beam, the straight line or curve. The fixed hoist can be mounted on the fixed support for vertical lifting.
Features
Lifting Motor
Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist.
Large toque, stable operation, compact structure, small size, light weight
Effective braking, safe operation, easy maintenance
High safety with B or F class insulation, IP44, IP54 protection.
Travelling Motor
The travelling motor of electric wire rope hoist has the features of stable starting, effective braking, with fully covered B or F Class insulation, IP44, IP54 protection, IC0141 self-cooling, etc.
Lifting Reducer
High quality three-level dead axle helical gear rotating body ensures long serving life.
Gear and axle is made of high intensity alloy steel which had been treated with heat.
Box and cover are made from superior cast iron.
Lifting reducer has great speed ration and high accuracy.
Lifting reducer has compact structure, and is quiet during operation with high working efficiency.
It is easy to assemble and disassemble.
Rope Drum
Weld rope drum is light in terms of dead weight.
Coil casing is made from superior cast iron with high intensity.
Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist.
No disturbance between rope sockets and has long working life.
The rope drum is high quality and is easily interchangeable.
Wire Rope.
The wire rope of electric wire rope hoist is mad of GB/T 20118-2006(6*37+1) hoisting wire rope, with the features of anti-tensile, good flexibility and good resistance to impact, long working life.
Hook
The hook of electric wire rope hoist is made of high quality carbon steel which ensures high security, can bear triple static load. Equipped with spring–loaded sturdy safety catch, electric wire rope hoist is kept from releasing of slings.
Fire Stopper
Fire stopper is made of adjustable mechanical memory structure with high sensitivity, equipped with limiting stopper, preventing hook clashing the top. The fire stopper has the feature of high safety and durability, easy installation and debugging, sensitive reaction, small and exquisite, etc.
Overload Limiter
Present the data based on your electric wire rope hoist working conditions.
Show accurate weight value clearly.
Modular, low power design, jam proof.
Ensure the safe operation of electric wire rope hoist.
Long service life of appliance components
Electrical Part
Electric parts of the electric wire rope hoist have the features as follow:
Control cabinet is with reasonable layout and easy to be repaired.
Protection class IP55.
Optional main power source is equipped on electric wire rope hoist.
Safe trolley conductor with high conductivity and small pressure drop.
Light dead weight, easy to install
Collector ensures continuing power supply
Control Mode
Electric wire rope hoist has two control methods: pendant control and remote control, with features of easy, safe, waterproof anti fall, etc.
