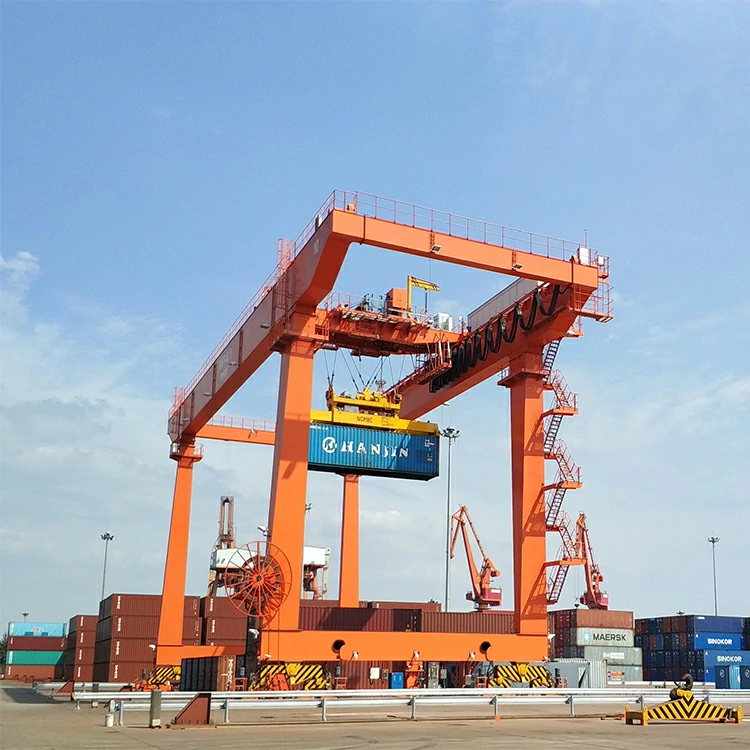

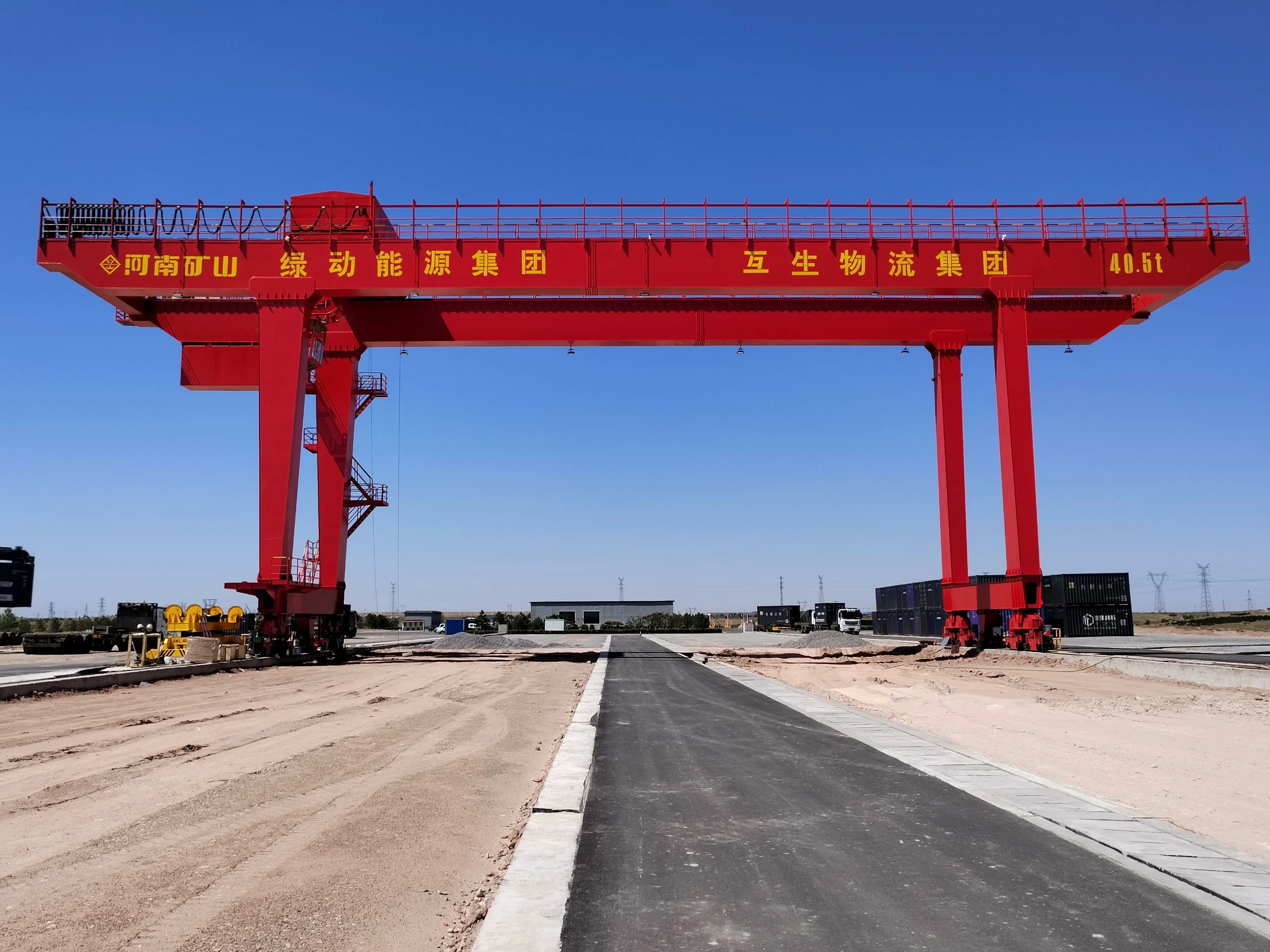

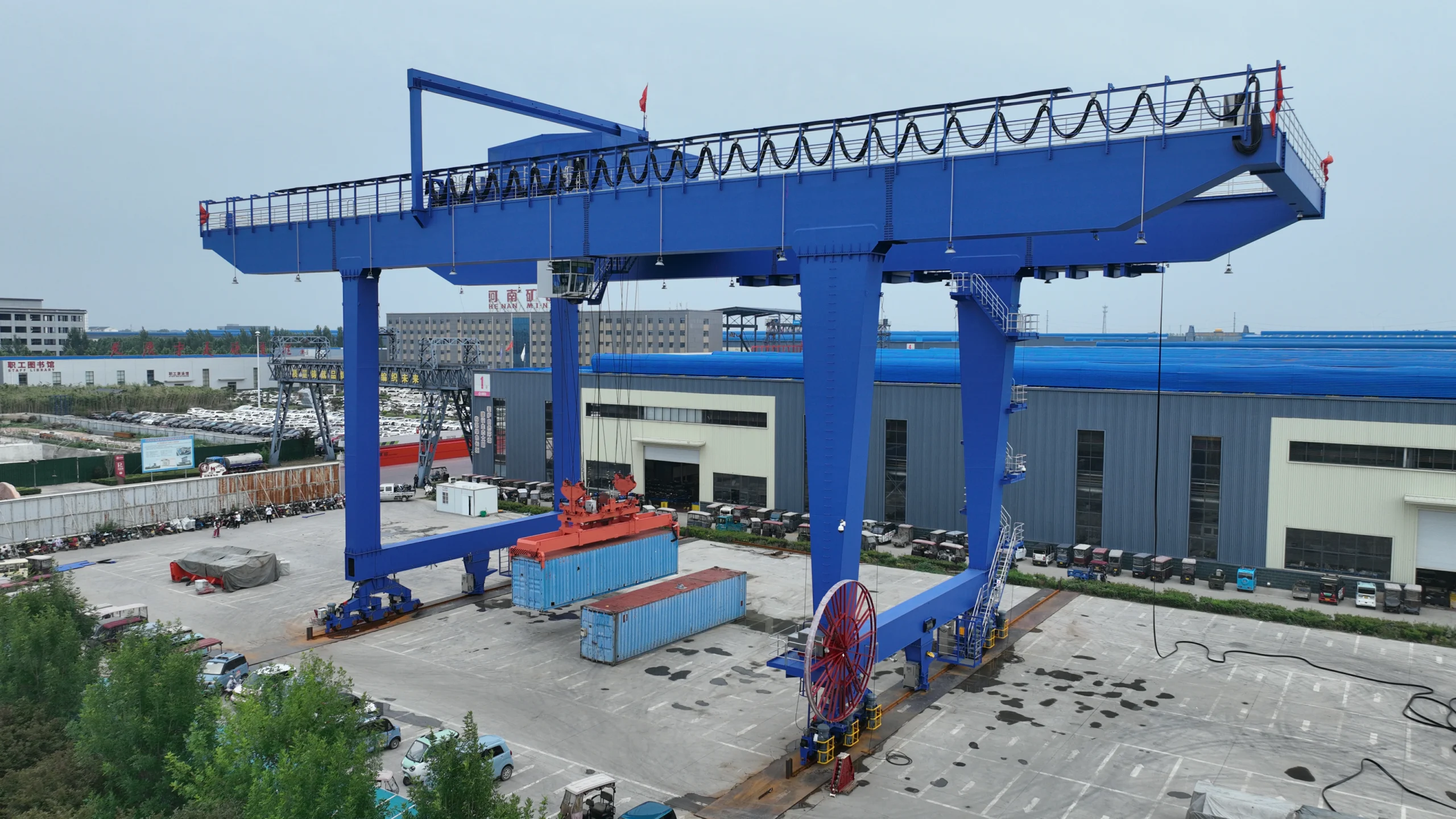

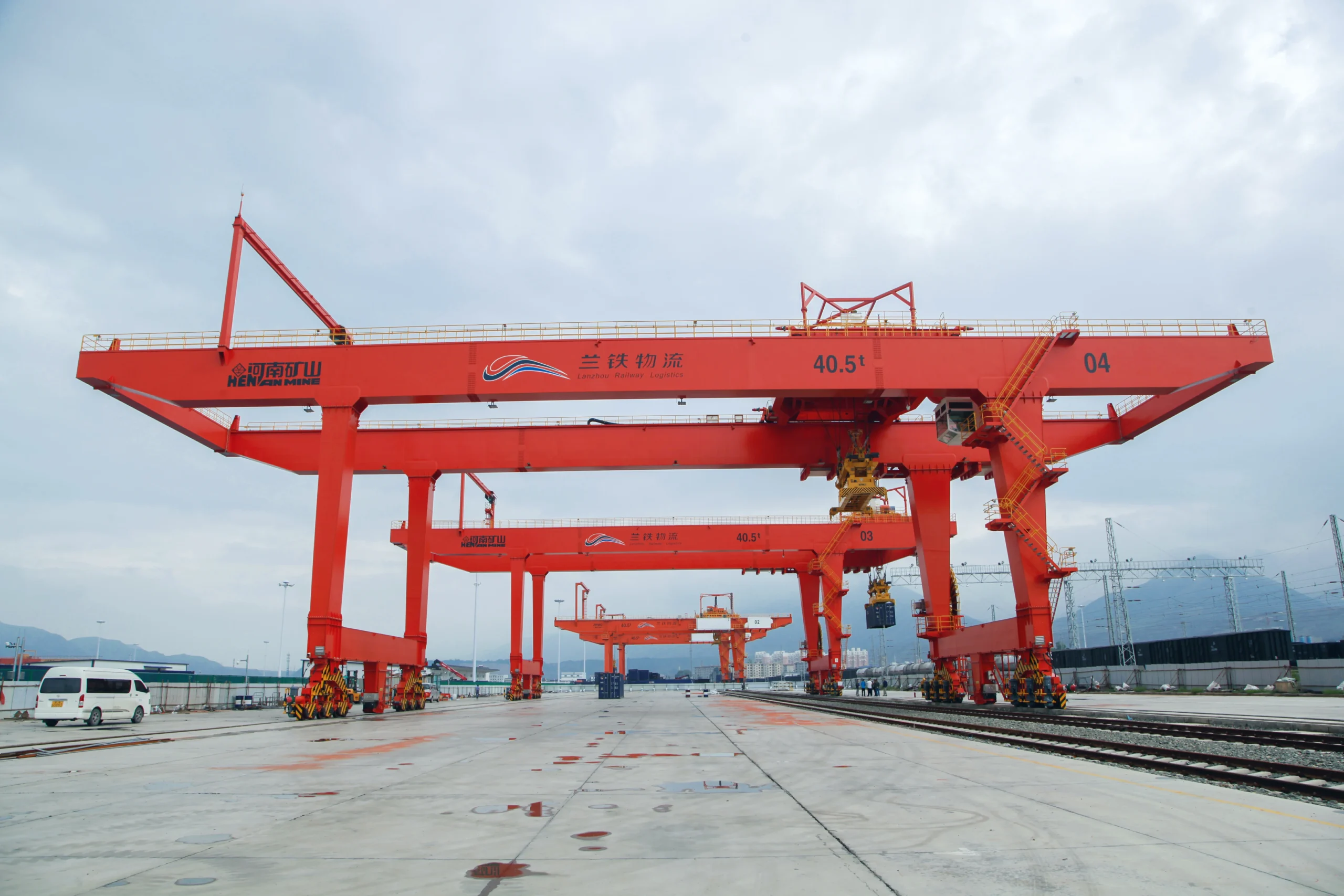

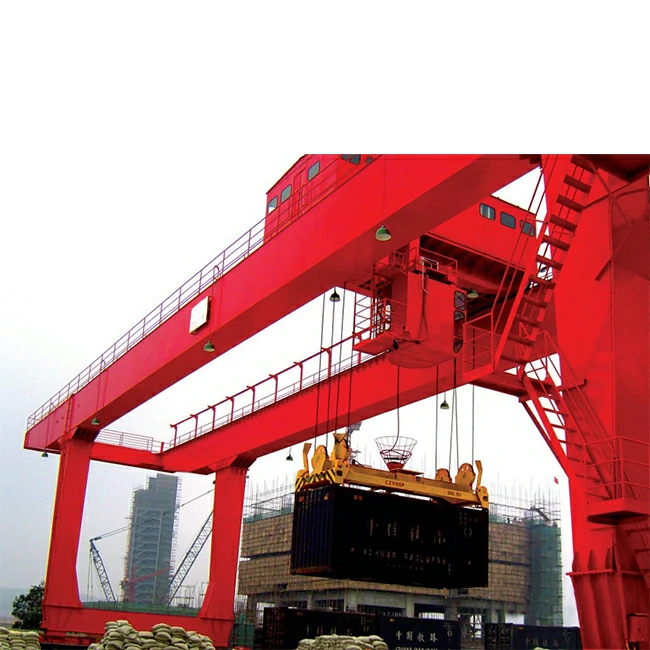

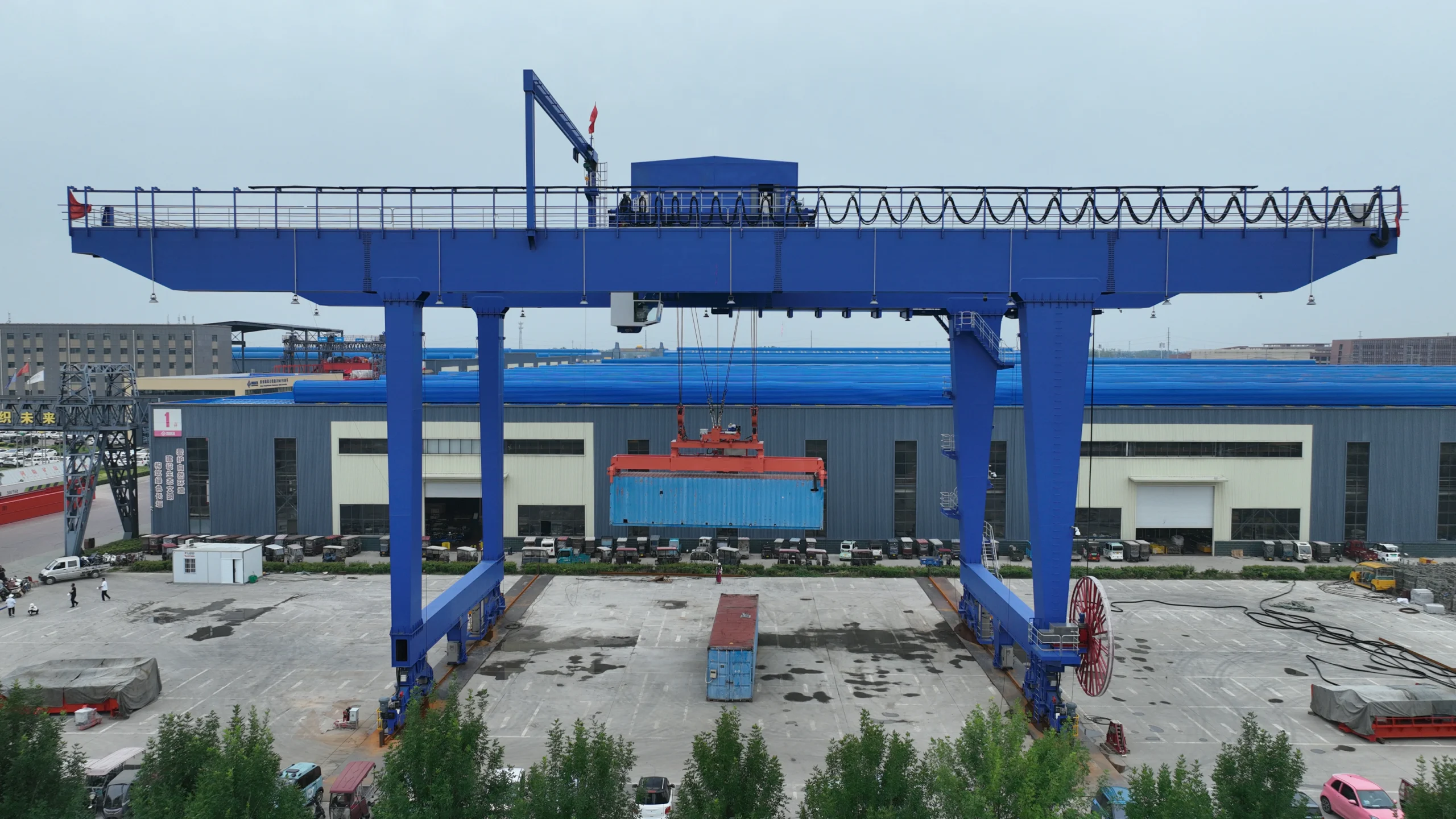

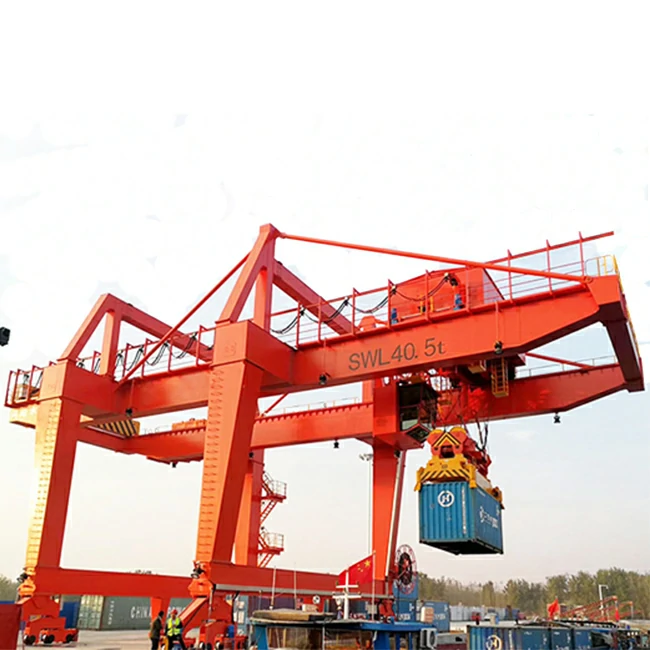

Rail Mounted Container Gantry Crane
The rail mounted container Gantry crane is used in railway transport yard and big container storage. The lifting capacity is 25 to 65 tons.
- Type:RMG
Lifting Capacity:25~65t
Lifting Height:
Span:15~35m
Working Duty:A6
Ambient Temperature:-20~40℃
Rail Mounted Container Gantry Crane Introduction
Rail mounted container gantry cranes also called RMG cranes are a type of heavy crane, travelling on fixed track, which is typically used to load and unload heavy items on rail transport yard, big container storage, docks, container yards and rail freight stations, transport and handling international ISO standard containers. The lifting capacity of rail mounted container gantry crane is 26 – 65 tons and the working class is A6.

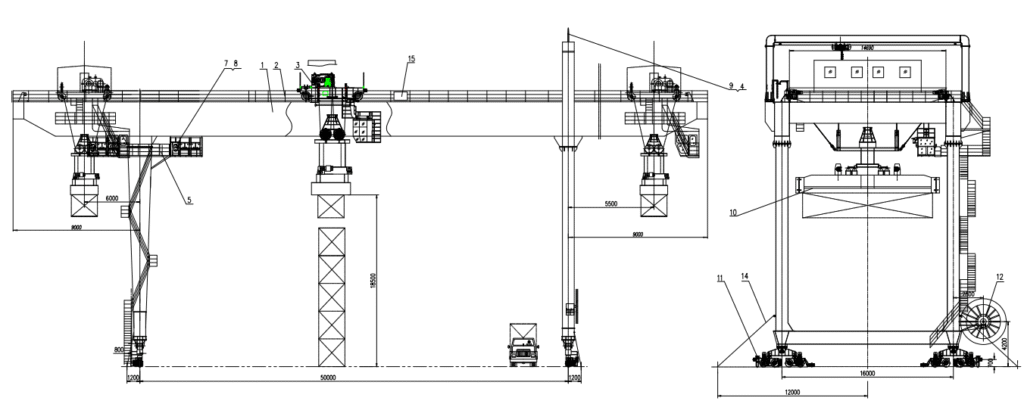

Components of Rail Mounted Container Gantry Crane
Rail mounted container gantry crane (RMG) generally includes the following units, steel frame, hoisting mechanism, minimum slewing mechanism, spreader anti-shaking mechanism, crane travel mechanism, trolley traverse mechanism, container spreader, electrical equipment and other accessory equipment for safety, Inverter, PLC and CMMS, etc.
Features of Rail Mounted Container Gantry Crane
- Variable traveling speed is available for the different span and different cantilever.
- International patented anti-swing system is adopted.
- Steady lifting and traveling movement of spreader ensures the safety and high efficiency operating.
- Electric sync systems is quipped on the crane when the crane span is over 40m.
Advantages of Rail Mounted Container Gantry Crane
Electrically powered and low operation cost
Efficient performance, precise steering, semi-automated or automated deployment.
Land utilization and less travel distance for street trucks at terminals
Dependability and comfortable
Environmentally friendly and low energy consumption
